Complete Diving Services to Vessels & Civil Engineering Industry

Multipurpose small floating Pontoon and Barges:

1. Multipurpose floating Pontoon

for Diving, Liftting, Dredging, Coring, Marine Works, Landing services:

2. Multipurpose Self-Propelled Barge

for Piling, Dredging, Excavation, Coring, Marine Works:

3. Multipurpose ST11 Barge

or cargo and vehicles transport, Dredging, Marine Works, Fuel supply, grey waters discharge for disposal:

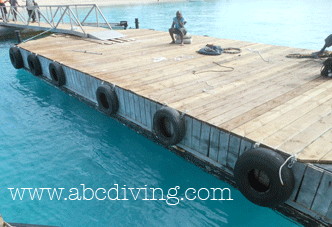

1) Multipurpose floating Pontoon

Built-in barge can be fitted with a 2 Ton lifting device over its pit (in the middle), four 360 Kg anchors & chains including a deep water anchorage possibility (up to 200 meters).
This pontoon offers a very stable deck due to the three cylinders configuration, almost no air draft and is very easy to tow or position on site.
Capable to operate in very shallow water / Easy to relocate / Removable planking around the deck for easy access / Strong Bits
load capacity about 12 tonnes
Features :
  • Length overall: 14.6 meters; Breadth: 6 meters; Draft: about 0.40 m; Lightship: about 5-6 tons; Deadweight: about 10 tons.
  • Surface available on flat timber deck: about 84 m2
  • Floor elevation: 0.7 meters over the water line.
  • Pit under floor (in the middle) to allow load lifting with an “A” frame

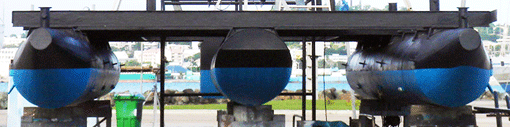

  • Steel Cylinders on three rows, providing a great stability and easy towage.
  • Load capacity: about 12 Tons
  • Strong Bits on side and front.
Strongly built floating platform with steel Beams made of IPE 200 mm, 3 Steel Cylinders 5 mm thick (4 watertight inside compartments + hatches each)
This small barge can be used to operate:
  • Easy ACCESS alongside a ship
  • Useful Work Deck for Shipworking
  • Passengers landing at island
  • Small helicopter landing (up to 15 tons)
  • Lifting and/or Controlled Descent of loads from the surface to the sea bed and vice-versa (with removal “A” frame on deck over the pit)
  • Sea works Surface SUPPORT for Hydraulic DREDGING (up to 30 meters deep), DEWATERING, CORING (up to 30 meters), Sea Bed Anchors DRIVING (up to 30 meters), etc.
  • Surface support for Marine alvage
  • SSBA or SCUBA diving support for dive operators
  • Etc

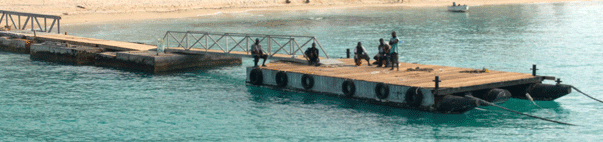

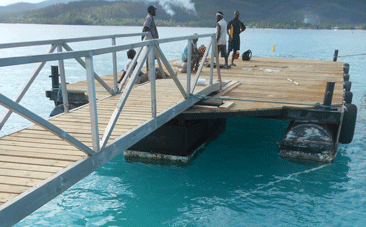

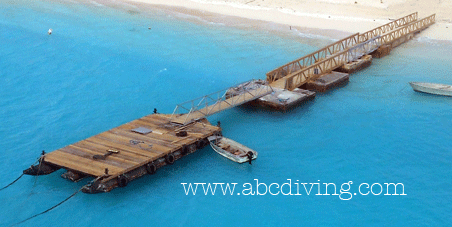

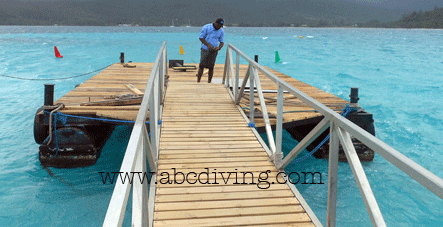

Small Barge quick transformation (2015) for passengers landing purpose (cruise ship compagnies)

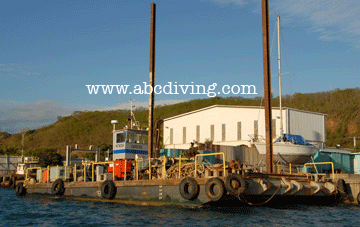

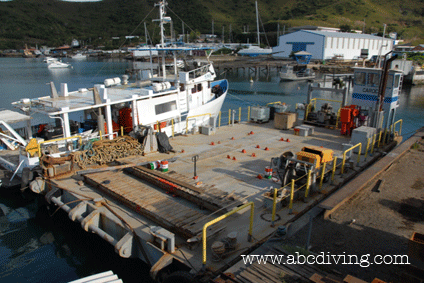

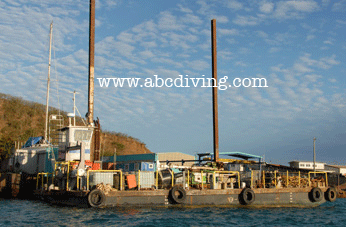

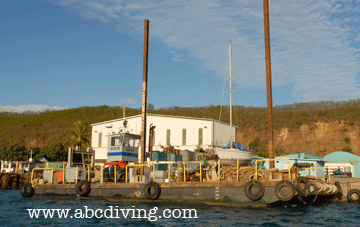

2) Self-Propelled Barge "CAROCE"

Features:

  • 10 m x 20 m x
  • Draft 1.60 m (laden)
  • GT

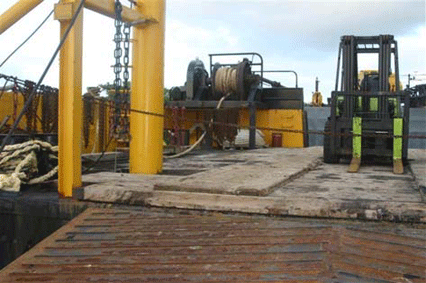

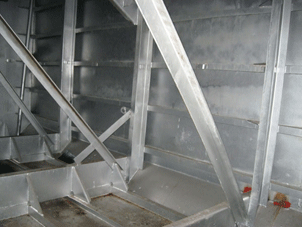

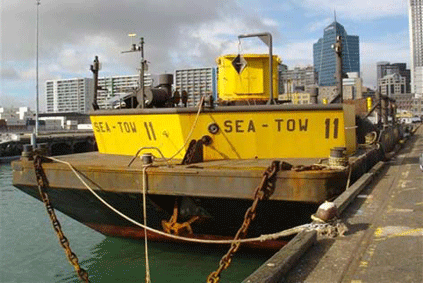

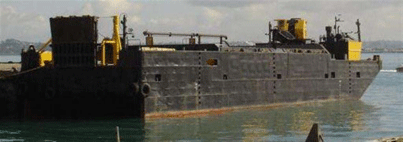

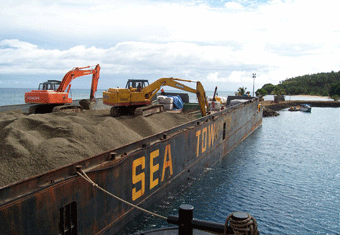

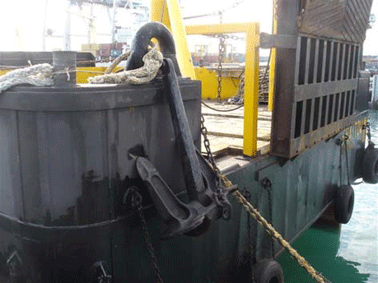

3) Multipurpose Barge ST11

Features:

  • 45.3 m x 12.2 m x 3.6 m (depth).
  • Draft 1.10 m (lightship) 3.30 m (laden).

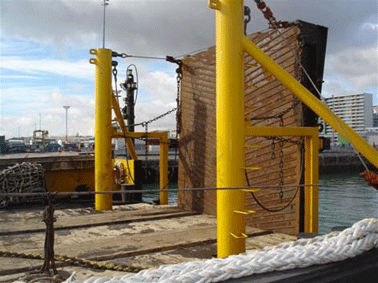

  • GT 740 tonnes, DWT 1000 tonnes, with Aft ramp loading, anchoring forward and aft.
  • Fuel capacity 300 tonnes.
+
